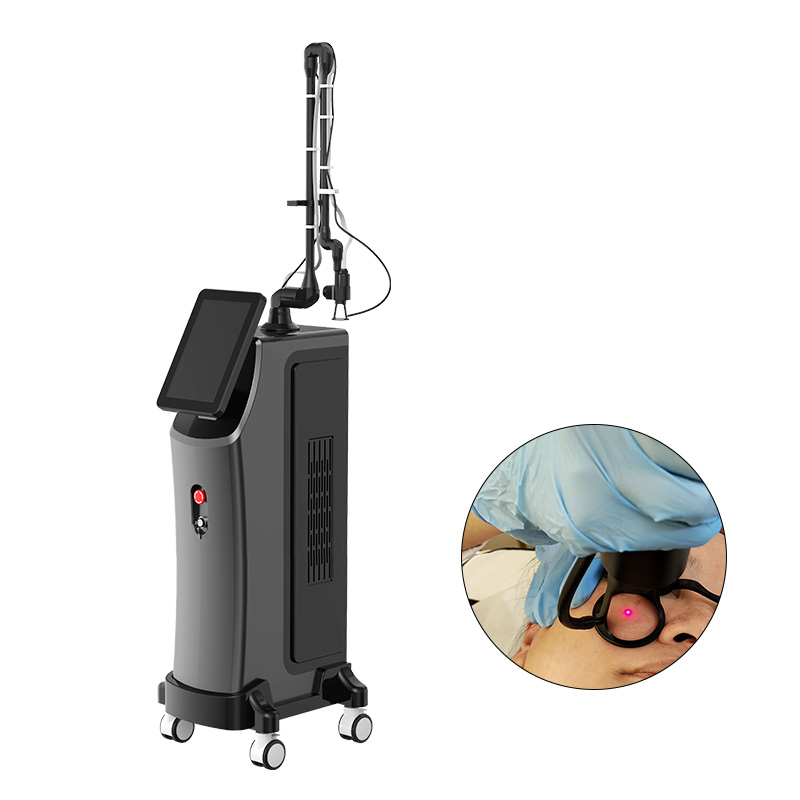

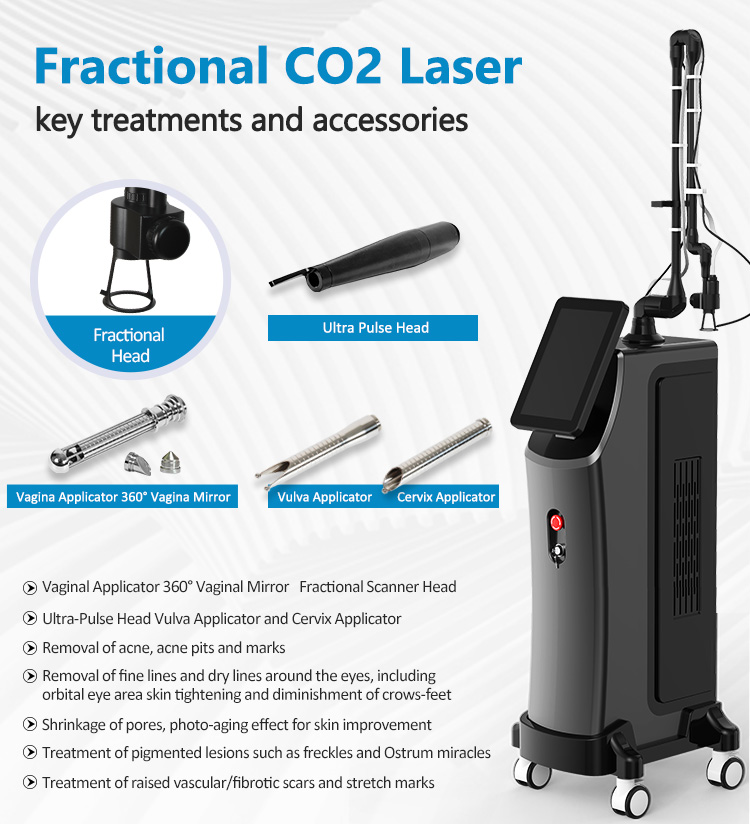

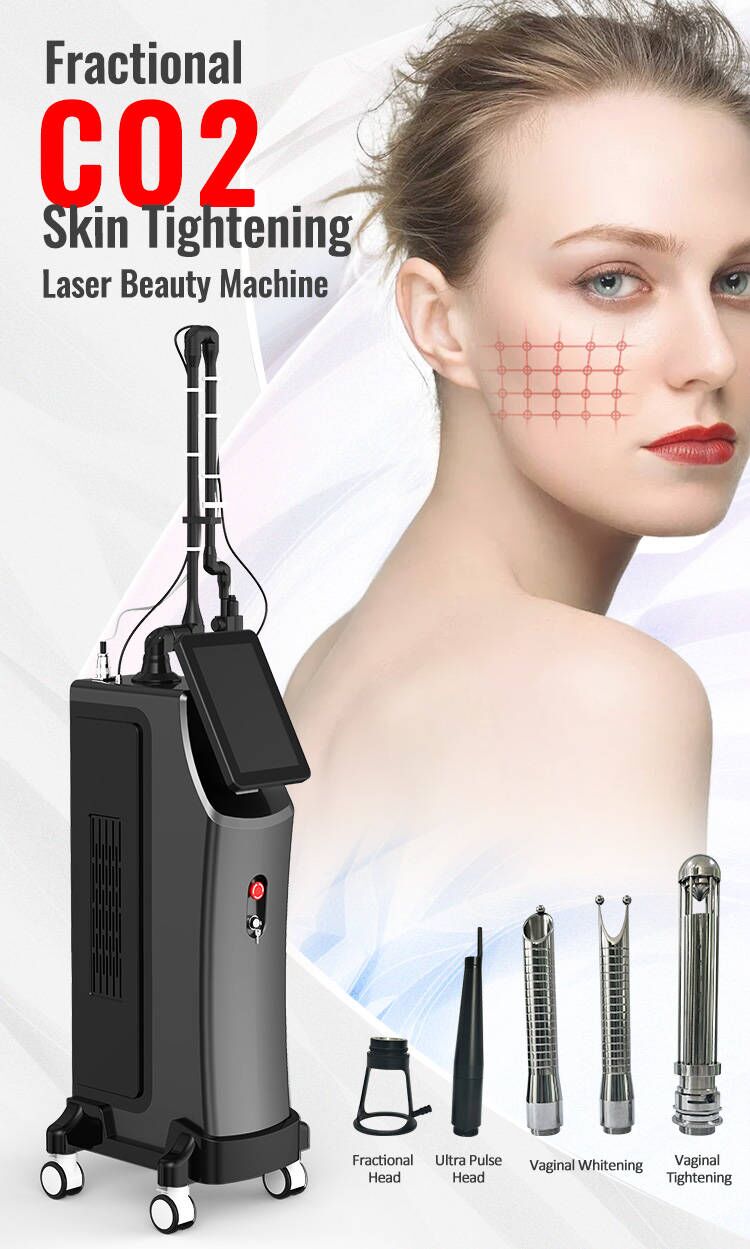

CO2 Laser System Fractional Laser Wrinkle Removal Laser Skin Beauty Machine
CO2 Laser System Fractional Laser Wrinkle Removal Laser Skin Beauty Machine

CO2 Laser System Fractional Laser Wrinkle Removal Laser Skin Beauty Machine

BG862

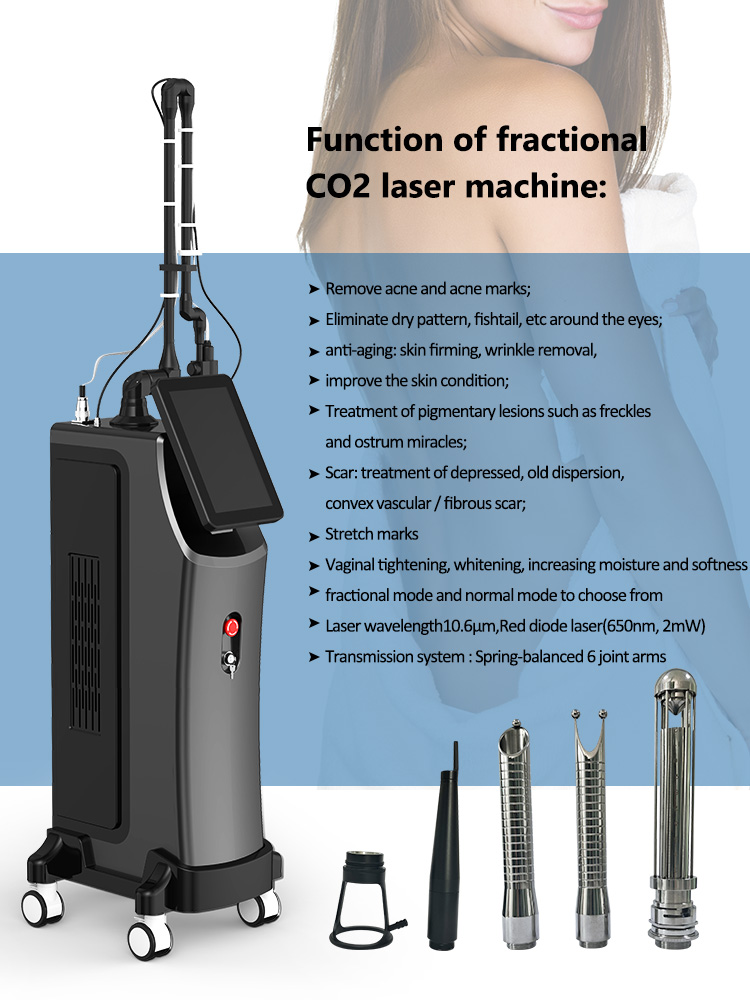

Application
(1) Remove acne and acne marks.
(2) Eliminate dry pattern, fishtail, etc around the eyes.
(3) anti-aging: skin firming, wrinkle removal, improve the skin condition.
(4) Treatment of pigmentary lesions such as freckles and ostrum miracles.
(5) Scar: treatment of depressed, old dispersion, convex vascular / fibrous scar.
(6) Stretch marks.

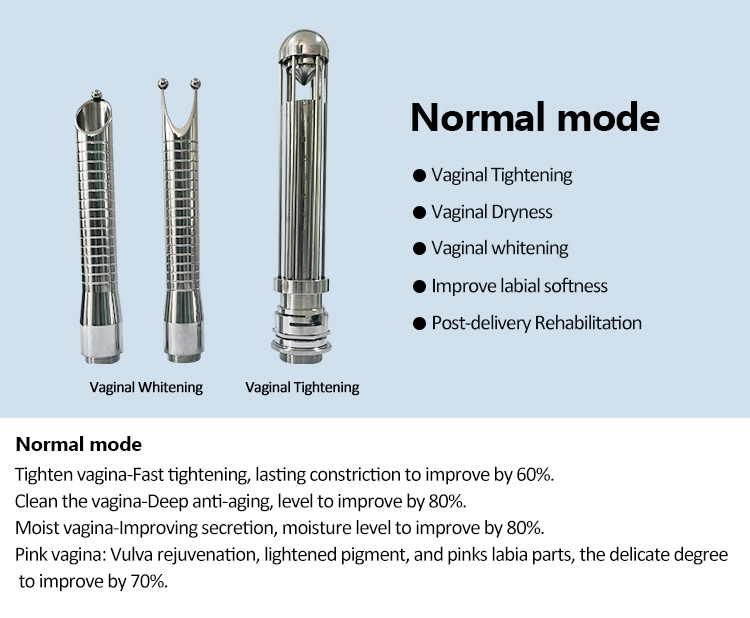

(7) Improves tissue tone and tightness in the labia externa and inside the vagina, tightens the skin and tissues, improves the tone, softness and moistness of the tissues.

CO2 Laser System Fractional Laser Wrinkle Removal Laser Skin Beauty Machine

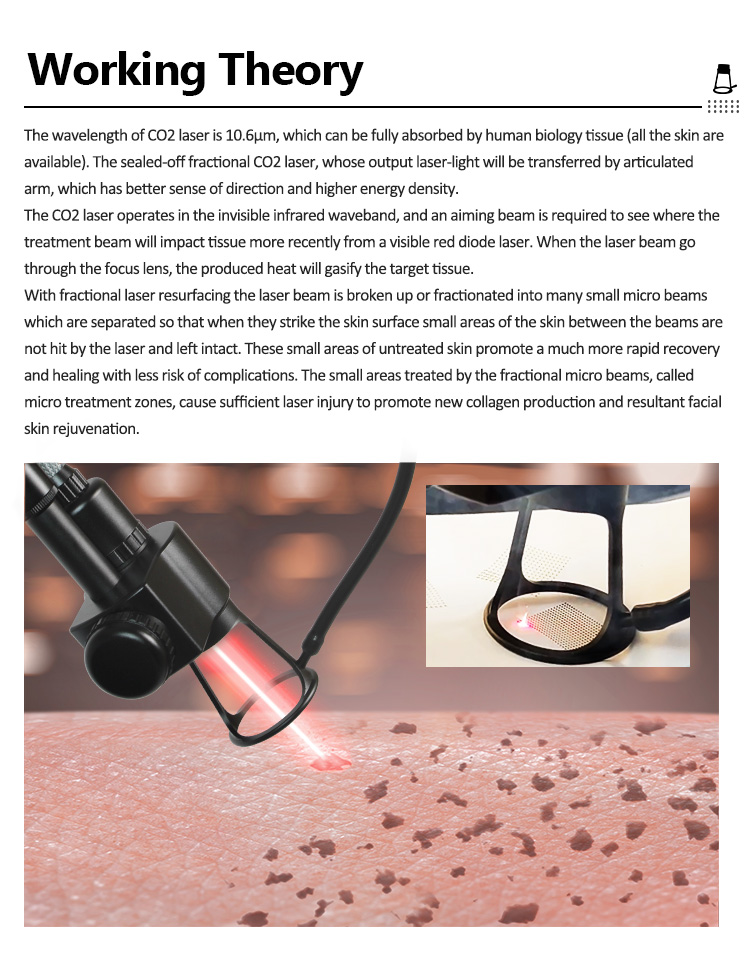

Theory

The wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue (all the skin are available). The sealed-off fractional CO2 laser, whose output laser-light will be transferred by articulated arm, which has better sense of direction and higher energy density.

The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam go through the focus lens, the produced heat will gasify the target tissue.

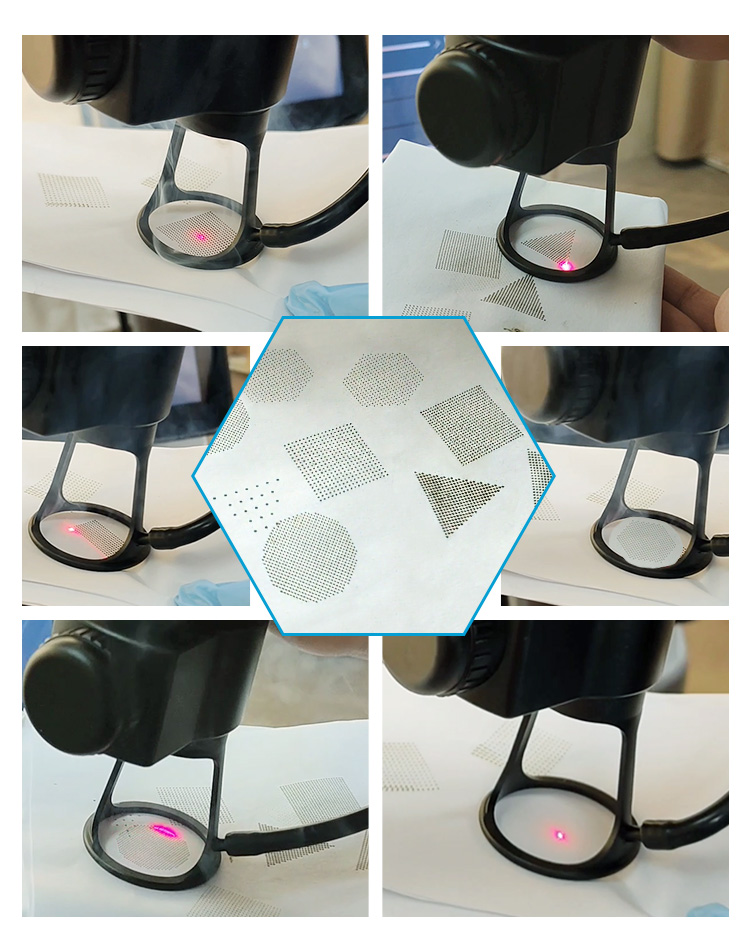

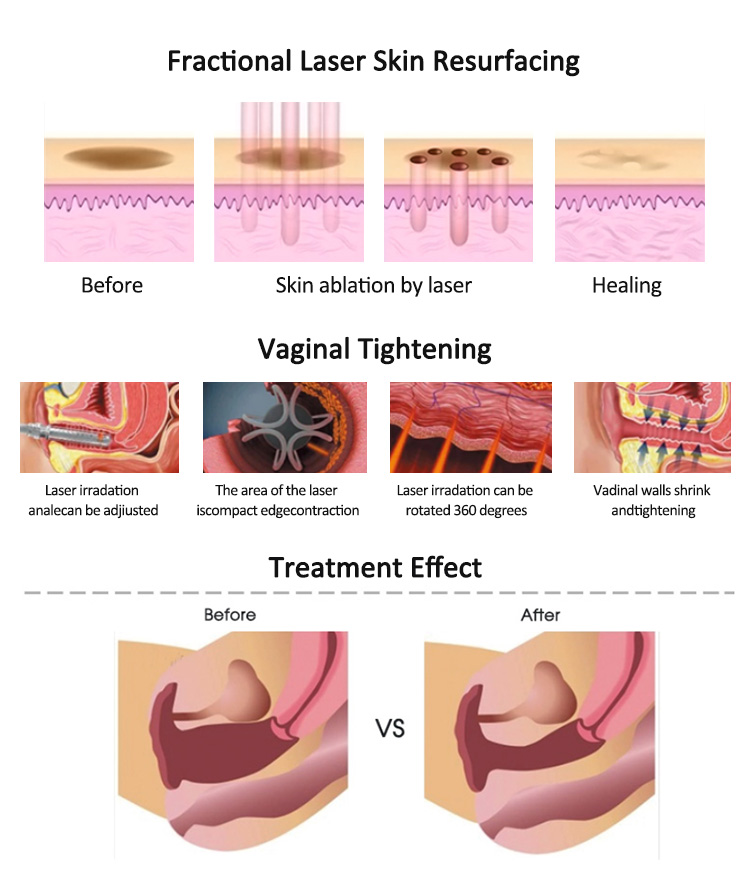

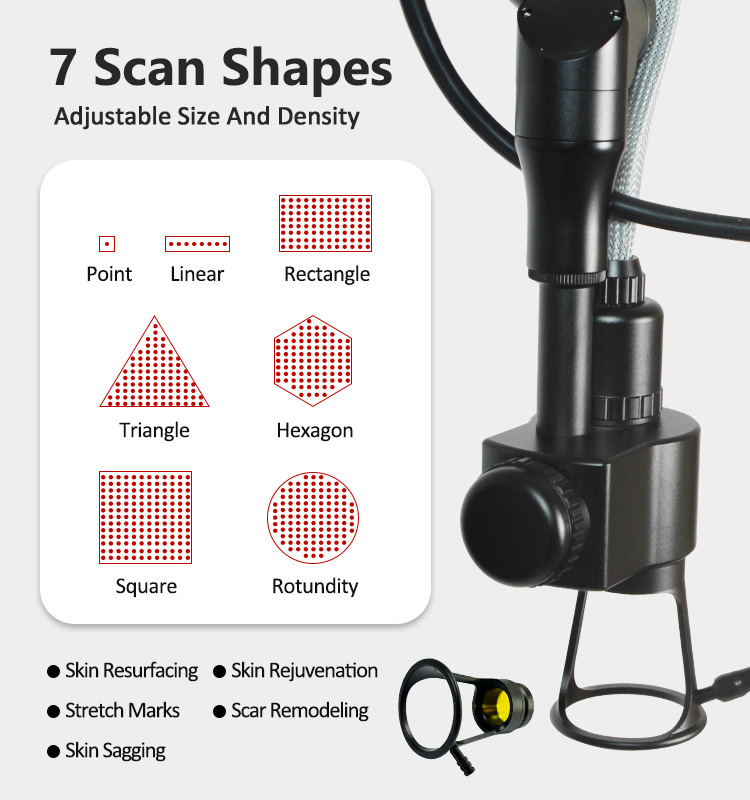

With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.

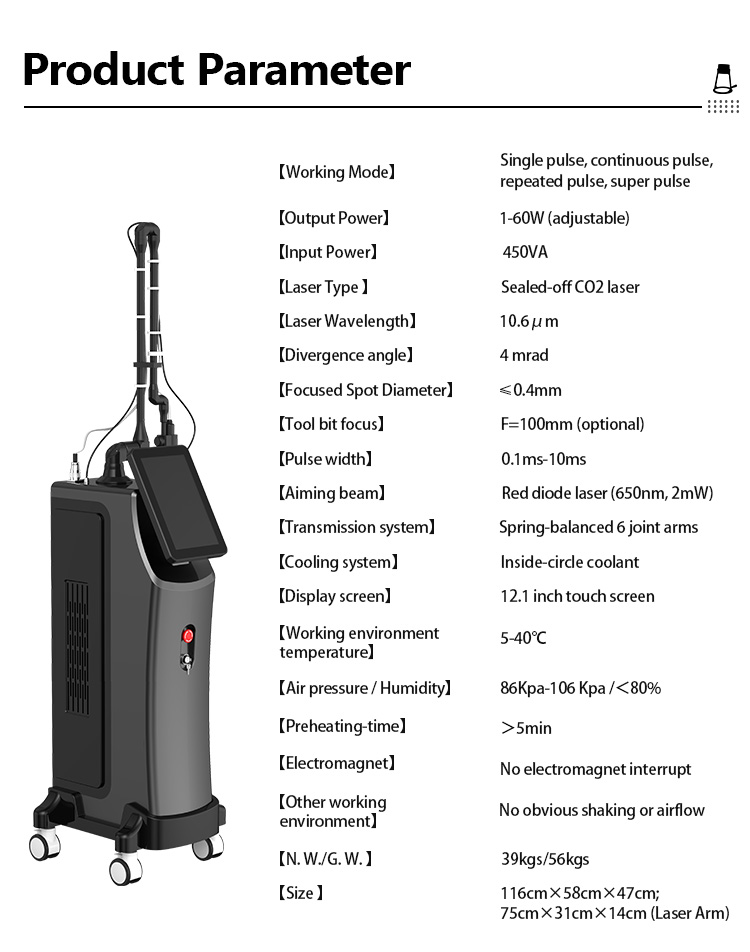

Co2 laser Parameters

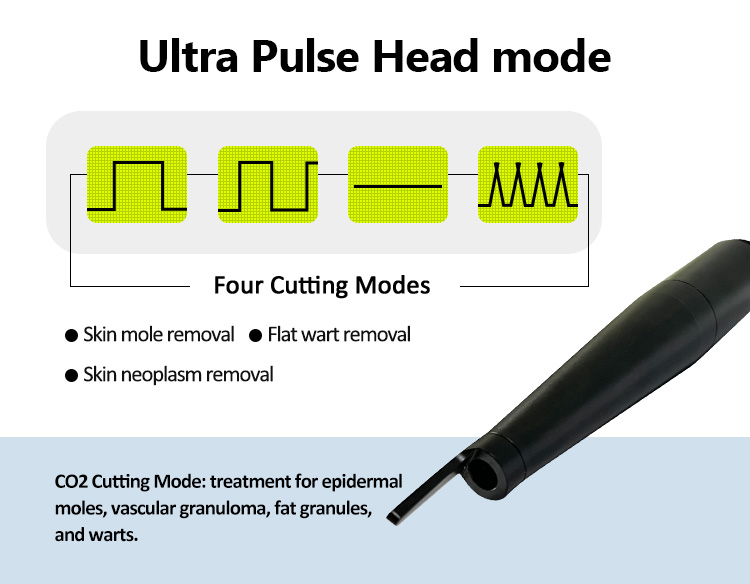

Working mode

single pulse, continuous pulse, repeat pulse, super pulse

Output power

1-60W (adjustable)

Input power

450VA

Laser type

Sealed-off CO2 laser

Laser wavelength

10.6μm

Divergence angle

4mrad

Focused spot diameter

≤0.4mm

Tool bit focus

F=100mm (optional)

Pulse width

0.1ms-10ms

Aiming beam

Red diode laser (650nm, 2mW)

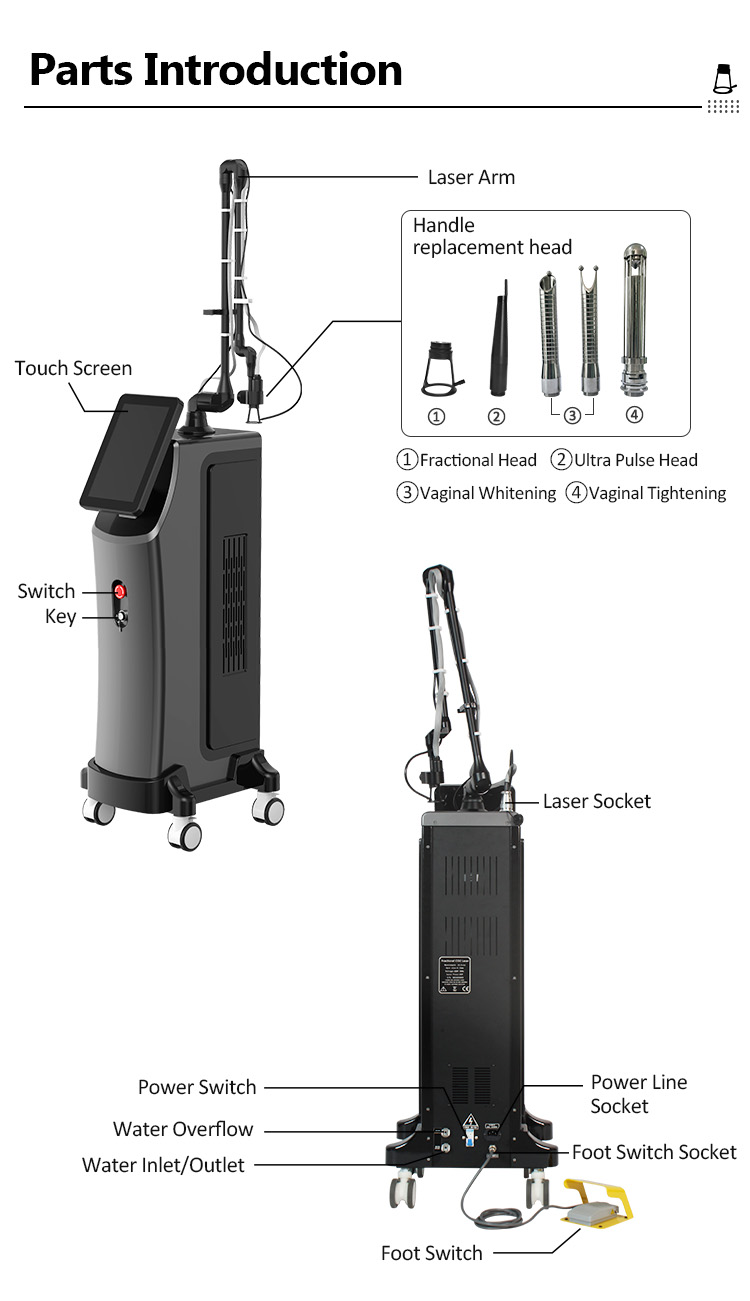

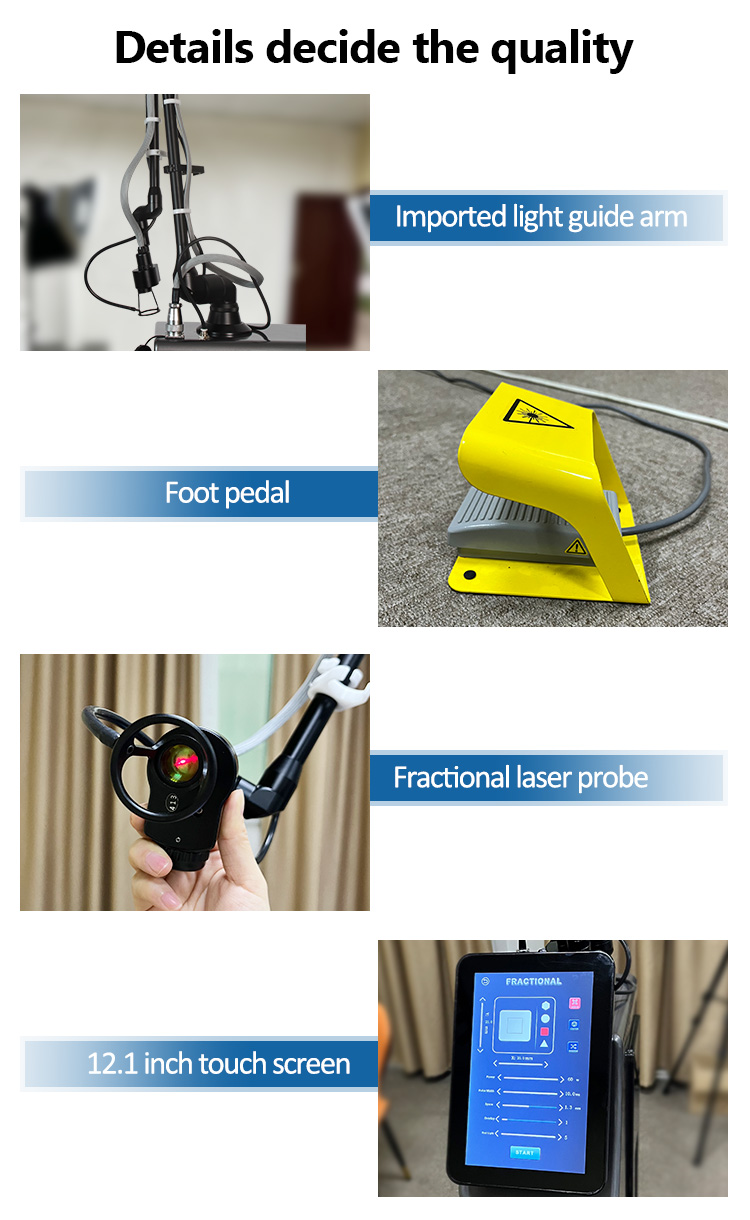

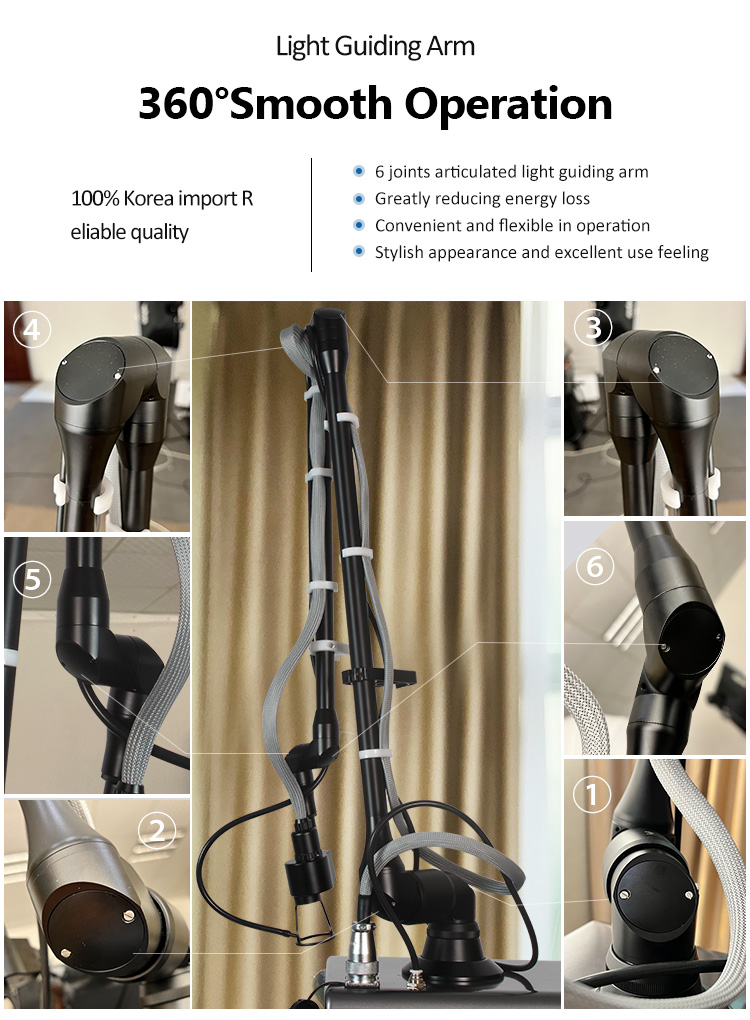

Transmission system

Spring-balanced 7 joint arms

Cooling system

Inside-circle coolant

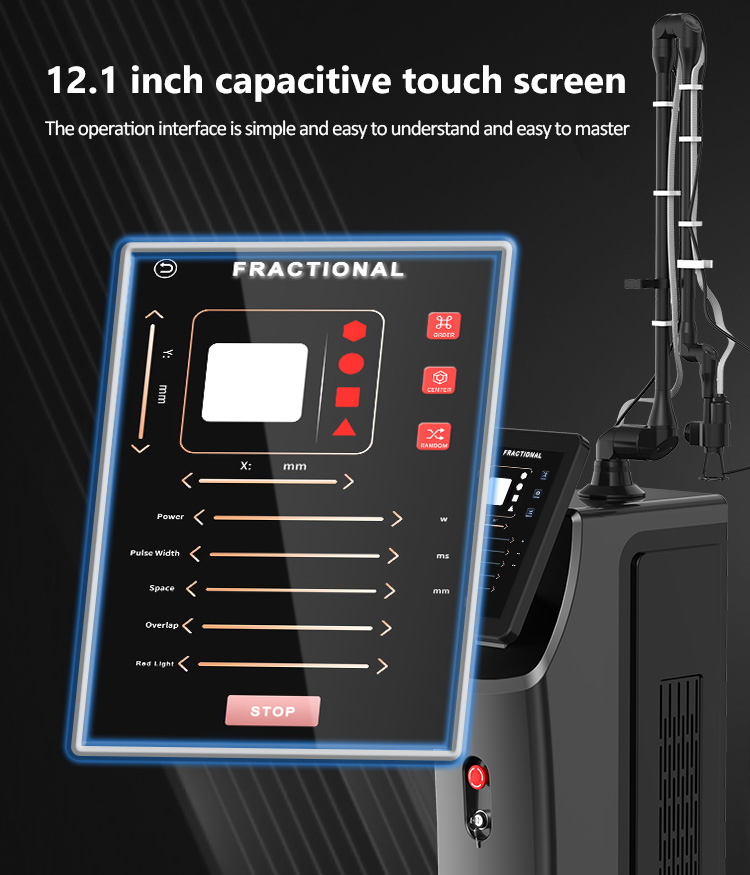

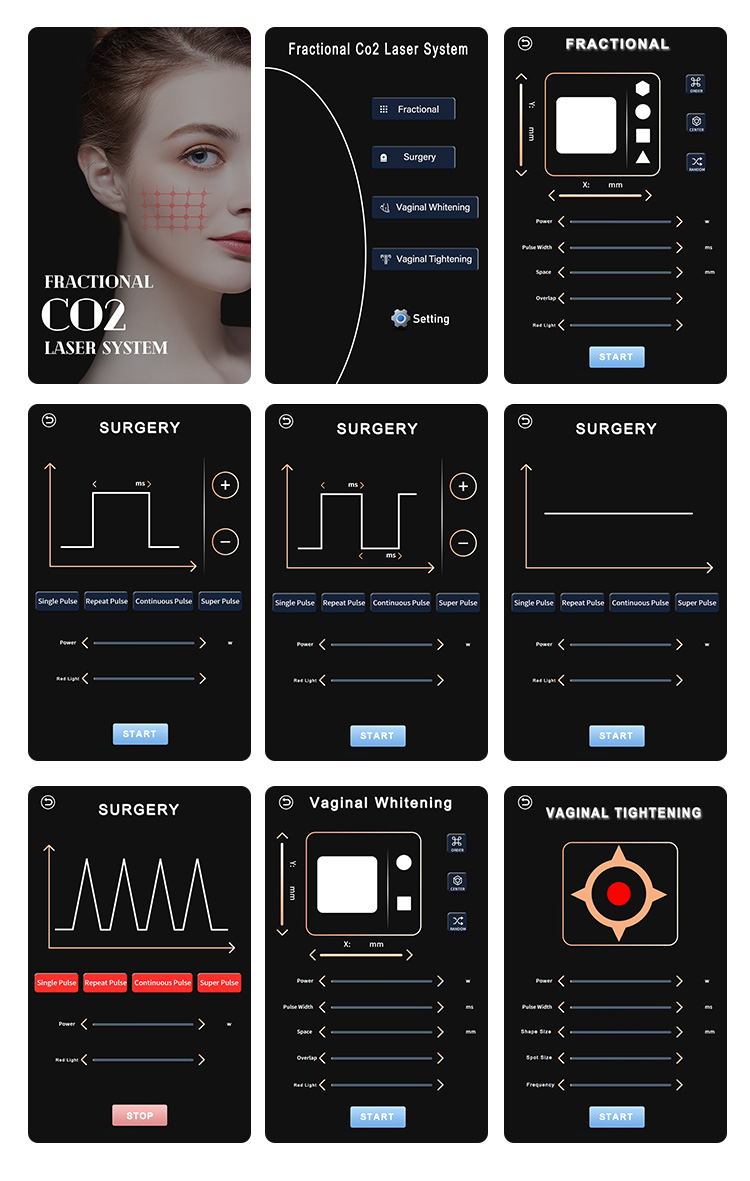

Display screen

12.1inch touch screen

Working environment temperature

5-40

Air pressure / Humidity

86Kpa-106 Kpa /80%

Preheating-time

5min

Electromagnet

No electromagnet interrupt

other working environment

No obvious shaking or airflow

N. W./G. W.

39kgs/56kgs

Size

116cm×58cm×47cm; 75cm×31cm×14cm (Laser Arm)
