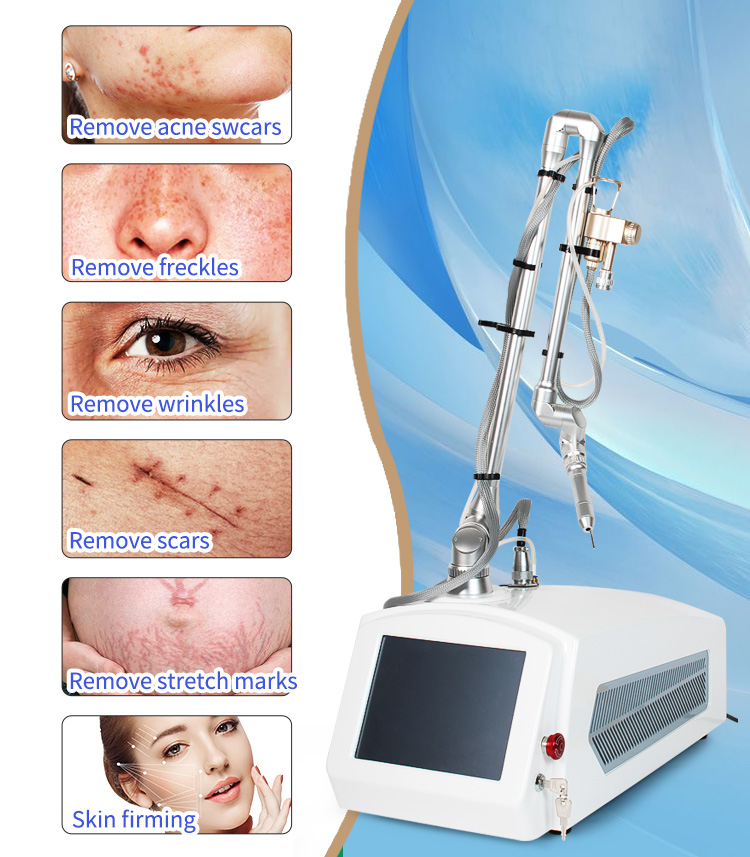

CO2 Fractional Laser Application
(1) Removal of acne, acne pits and acne marks.
(2) Removal of fine lines and dry lines around the eyes, including eyelids and crow's feet.
(3) Anti-aging: skin lifting and tightening, wrinkle reduction, enlarged pores, photo-aging skin improvement.
(4) Treatment of pigmented lesions such as freckles and ostrum miracles.
(5) Scars: treatment of depressed, old, raised, vascular/fibrotic scars.
(6) Stretch marks.

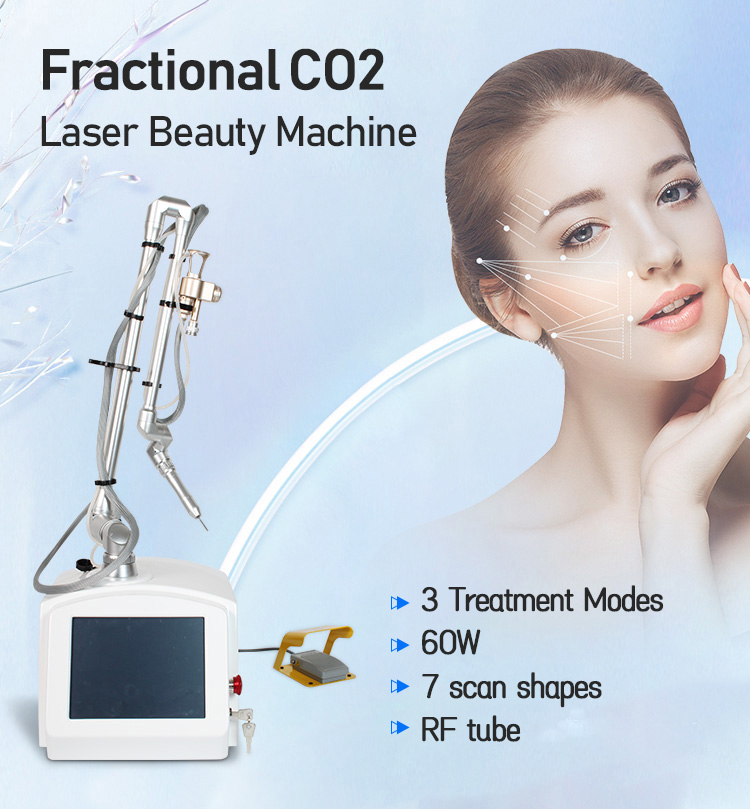

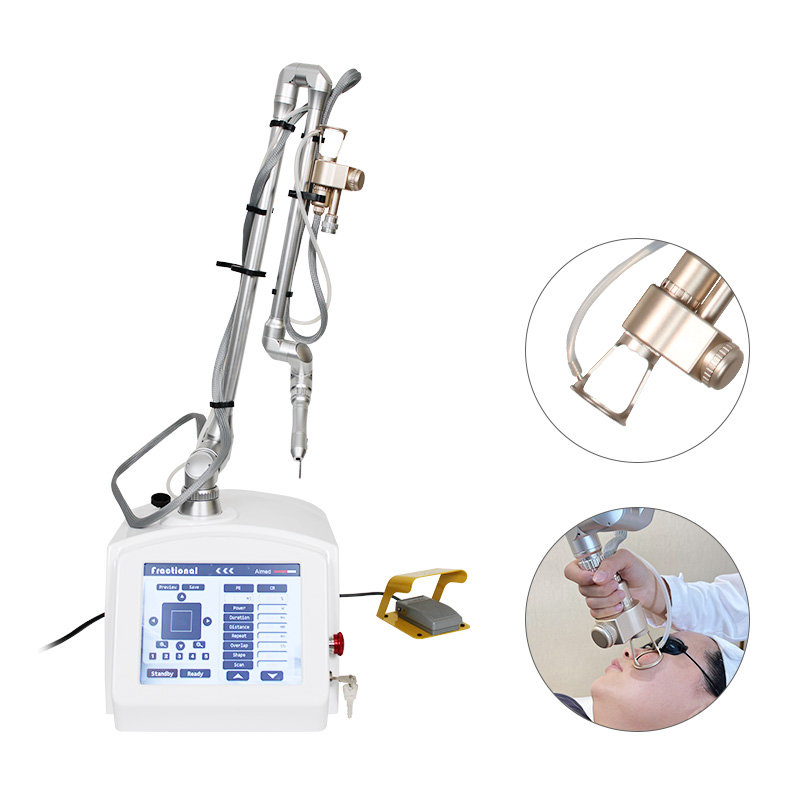

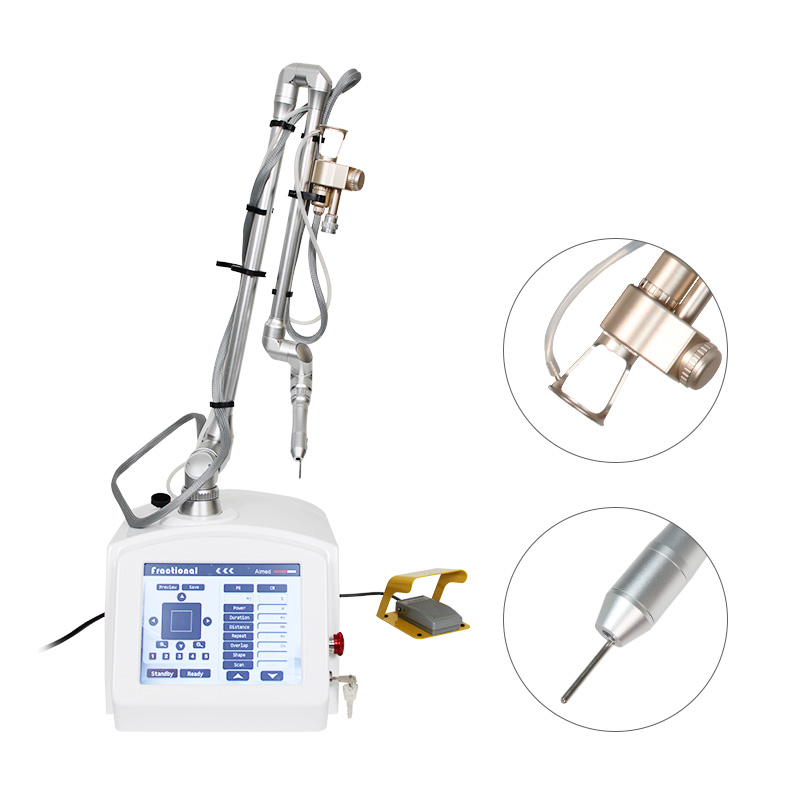

High Power CO2 Fractional Laser Machine 60 CO2 Laser Skin Care Beauty Instrument Factory Price

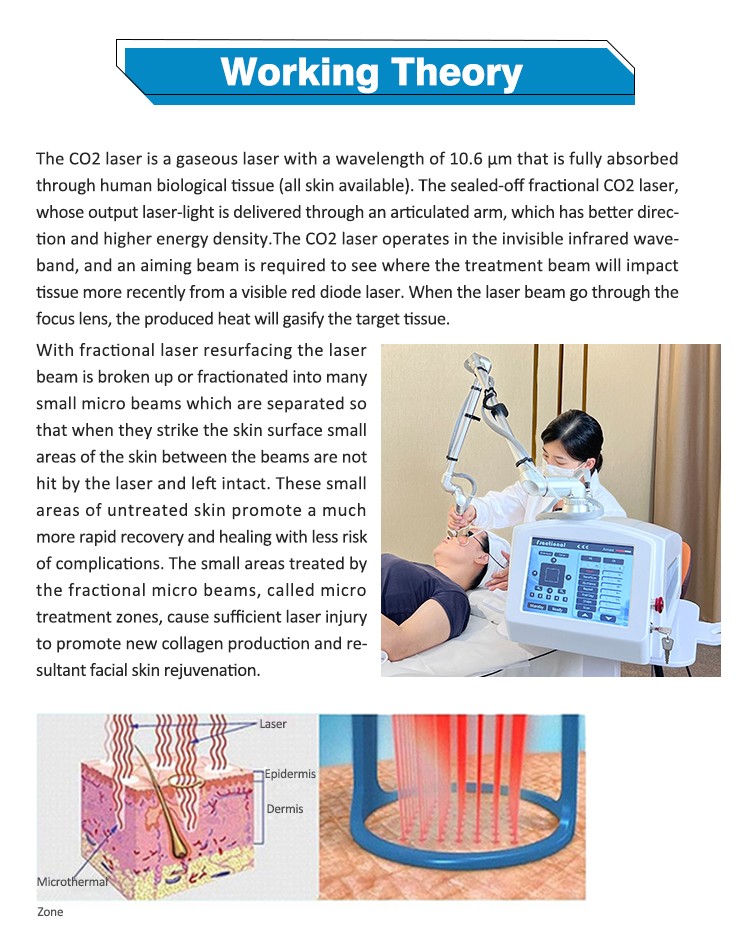

CO2 Fractional Laser Working Theory
The CO2 laser is a gaseous laser with a wavelength of 10.6 μm that is fully absorbed through human biological tissue (all skin available). The sealed-off fractional CO2 laser, whose output laser-light is delivered through an articulated arm, which has better direction and higher energy density.
The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam go through the focus lens, the produced heat will gasify the target tissue.
With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
CO2 Fractional Laser Parameters
Working Mode | single pulse, continuous pulse, repeated pulse, ultra pulse |
Output Power | 0-60W (adjustable) |
Input Power | 450VA |

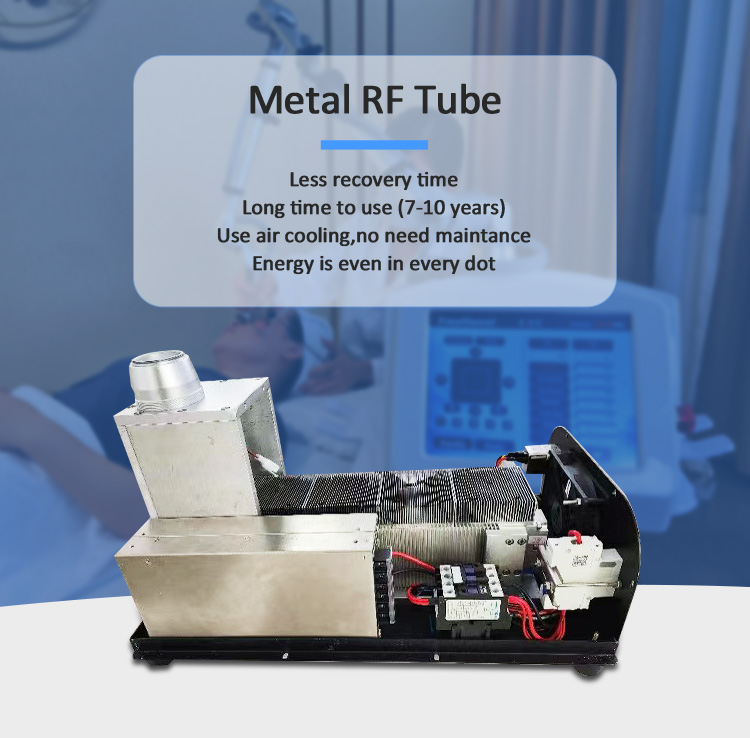

Laser Type | Sealed-off CO2 laser |
Laser Wavelength | 10.6μm |
Divergence Angle | 4mrad |
Focused Spot Diameter | ≤0.4mm |
Focal Length of working head | F=75mm (optional) |
Pulse Width | 0.02-0.99s |
Indication Beam | Red Diode Laser (650nm,≤5mW) |
Cooling System | Air Cooling |
Transmission System | 7-Articulation Joint Spring Arm |

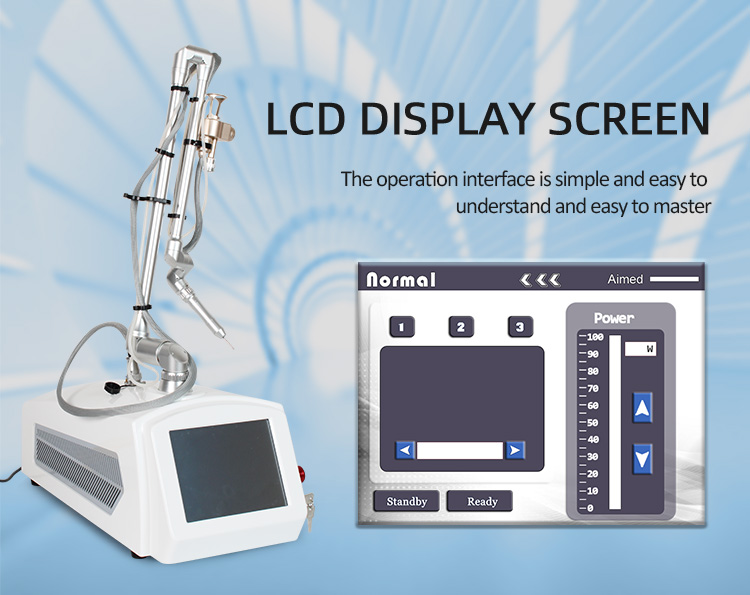

Display Screen | LCD |
Environmental Temperature | 5-40℃ |
Relative Humidity | <80% |
Input power | AC220V±10%, 50Hz |
Package Size | 76cm×55cm×35cm |
G. W. | 40kgs |
